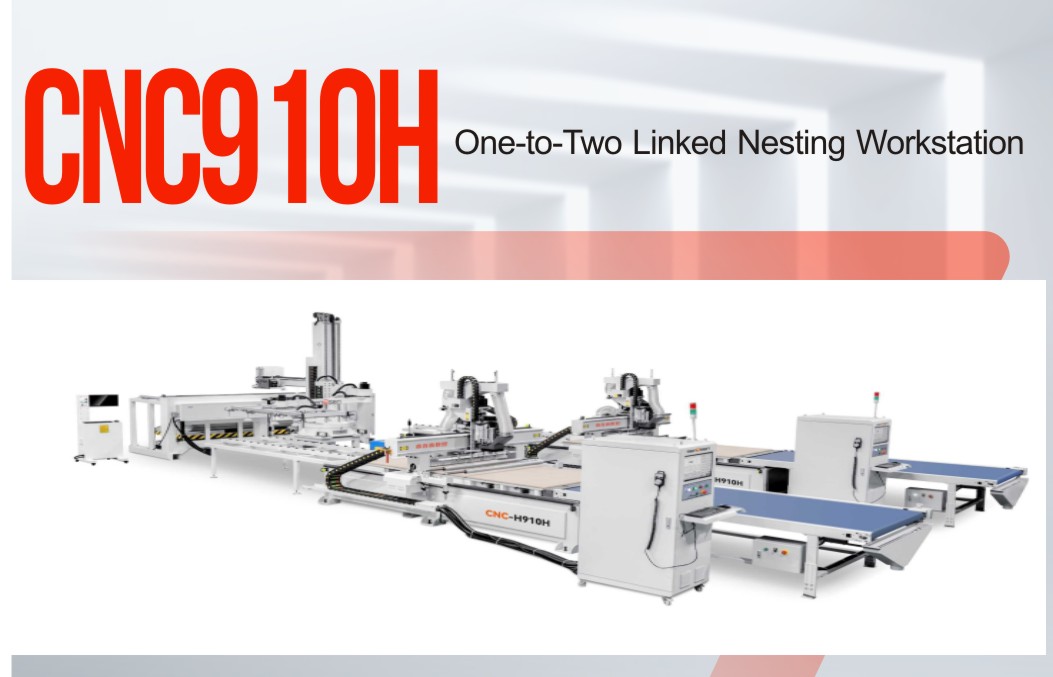

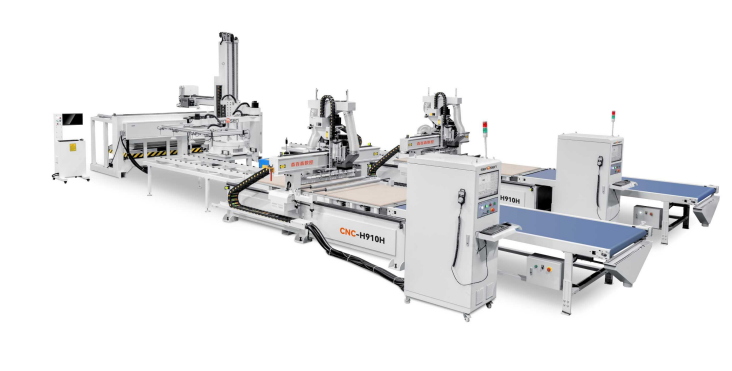

CNC910H one-to-two linked nesting workstation adopts an automatic one-to-two layout. One auto loading system serves two CNC nesting machines, realizing automatic loading, processing and unloading continuously. Daily output up to 300 panels. Ideal for batch production of cabinets, wardrobes and custom furniture, for panel cutting, drilling and grooving. Labor-saving, high efficiency and stable performance.
The machine can automaticaly complete the labeling, driling, slotting, cuting, and cuting of the board as an integrated procesing equipment. No need for manual flipping, double-sided punching and slotting can be completed in one go.
9KW automatic tool changing spindle(12 in-line tool library)
1. 9KW air-cooled spindle motor, no need to wait for tool change time, fast processing, higher eficiency.
2. 12 straight row knife storage, muliple knives can be freely switched to meet processes such as drlling, slotting, miling, canving, cuttingand three in one invisible parts. Multiple shapes can be completed in one go.
3. Dust free vacuum hood reduces the wear and tear of cutting tools caused by dust, ensuring dust-free cutting.

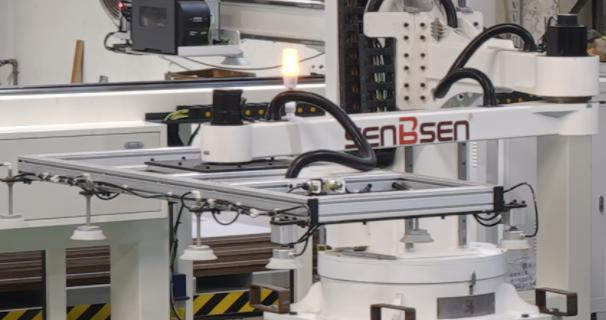

Four-axis mechanical arm loading
One four-axis mechanical arm can be connected to two cutting machine.Faster feeding, higher efficiency and reducing labor costs.
Pneumatic feeding sucker
Vacuum suction cup suction plate loading, stable loading,convenient and fast, eliminates manual lifting of the plate,and saves labor costs.

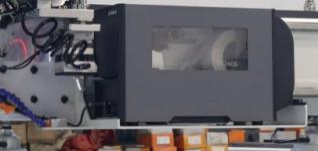

Automatic labeling
No manual labeling and higher labeling efficiency
Auxiliary feeding roller
Easy loading, avoiding collisions and scratches caused by manual loading and unloading, improving processing safety and efficiency.
