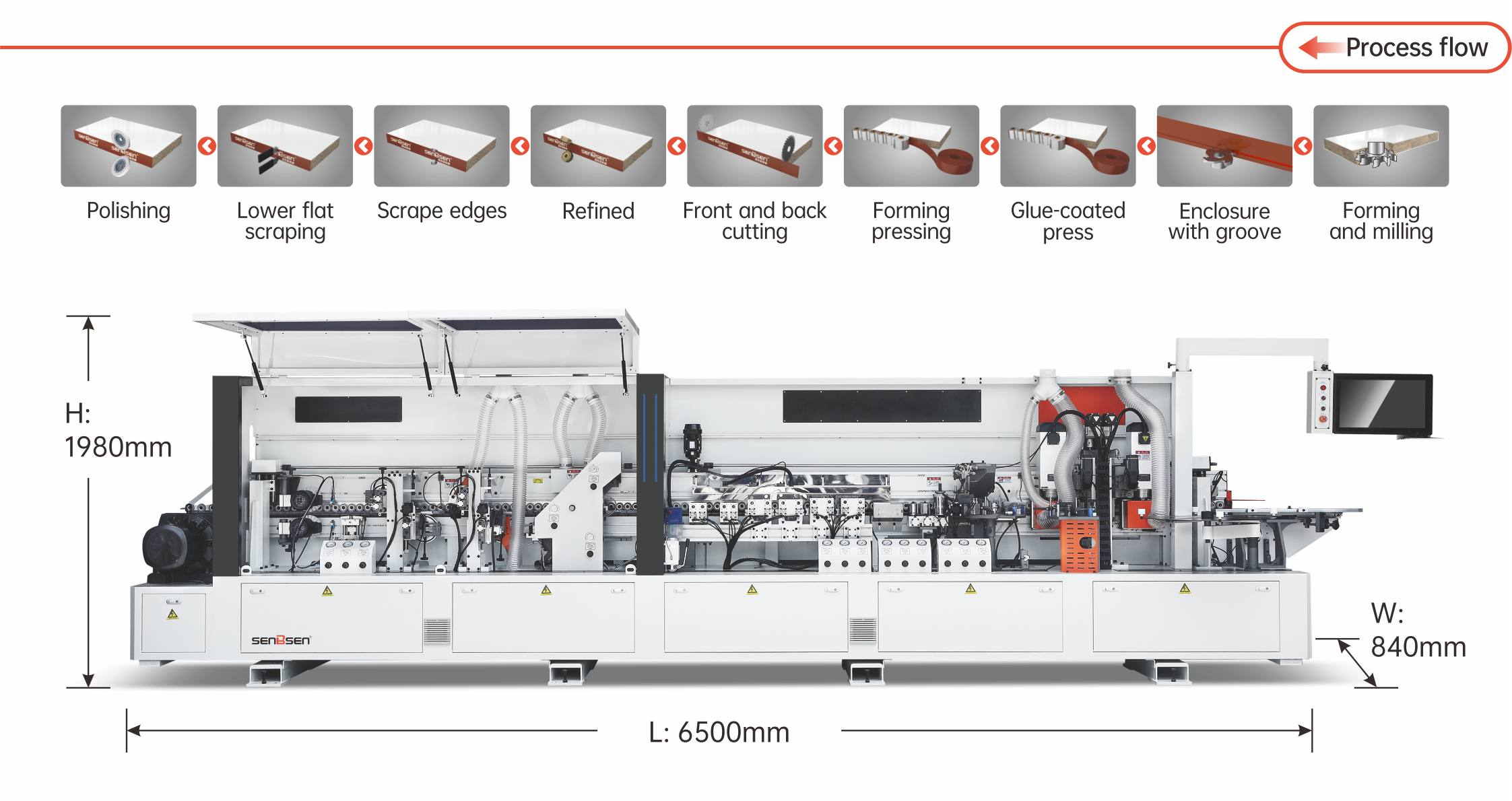

The entire edge sealing operation is strictly controlled, molding and miling > edge sealing with grooves > glue coating and pressing >molding and pressing > finishing > edge scraping > bottom flat scraping > polishing; After multiple qualty inspections and repeated debugging, the edge sealing is flat and firm and the details are perfect.

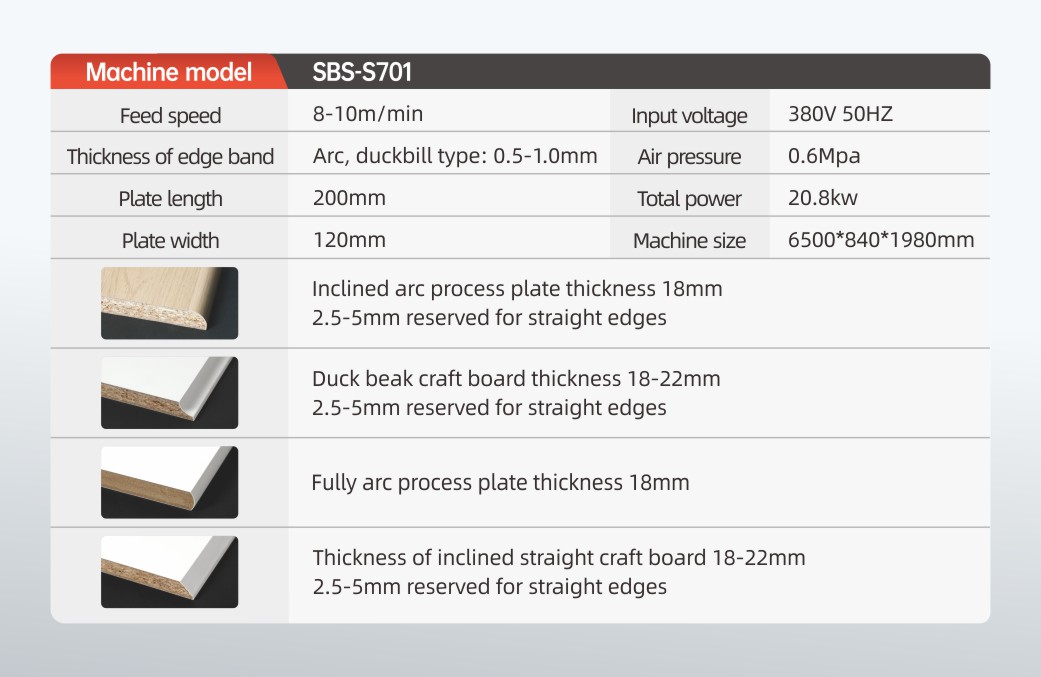

| Model | SBS-S701 Four-in-one arc oblique straight automatic edge banding machine | ||
| Feed speed | 8-10m/min | input voltage | 380V 50HZ |
| Edge band thickness | Arc,duckbill type: 0.5-1.0mm | Air pressure | 0.6Mpa |
| Plate length | 200mm | Total power | 20.8kw |
| Plate width | 120mm | Machine size | 6500*840*1980mm |
 |

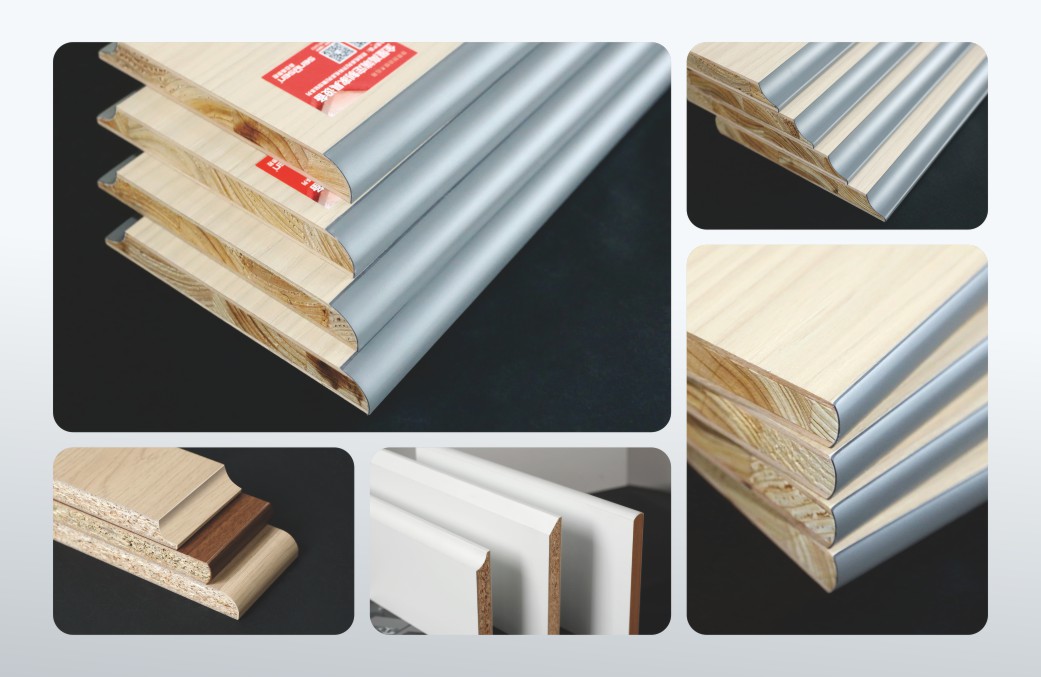

Inclined arc process plate thickness 18mm 2.5-5mm reserved for straight edges |
 |
Fully arc process plate thickness 18mm |
 |
Duck beak craft board thickness 18-22mm 2.5-5mm reserved for straight edges |
 |
Thickness of inclined straight craft board 18-22mm 2.5-5mm reserved for straight edges |

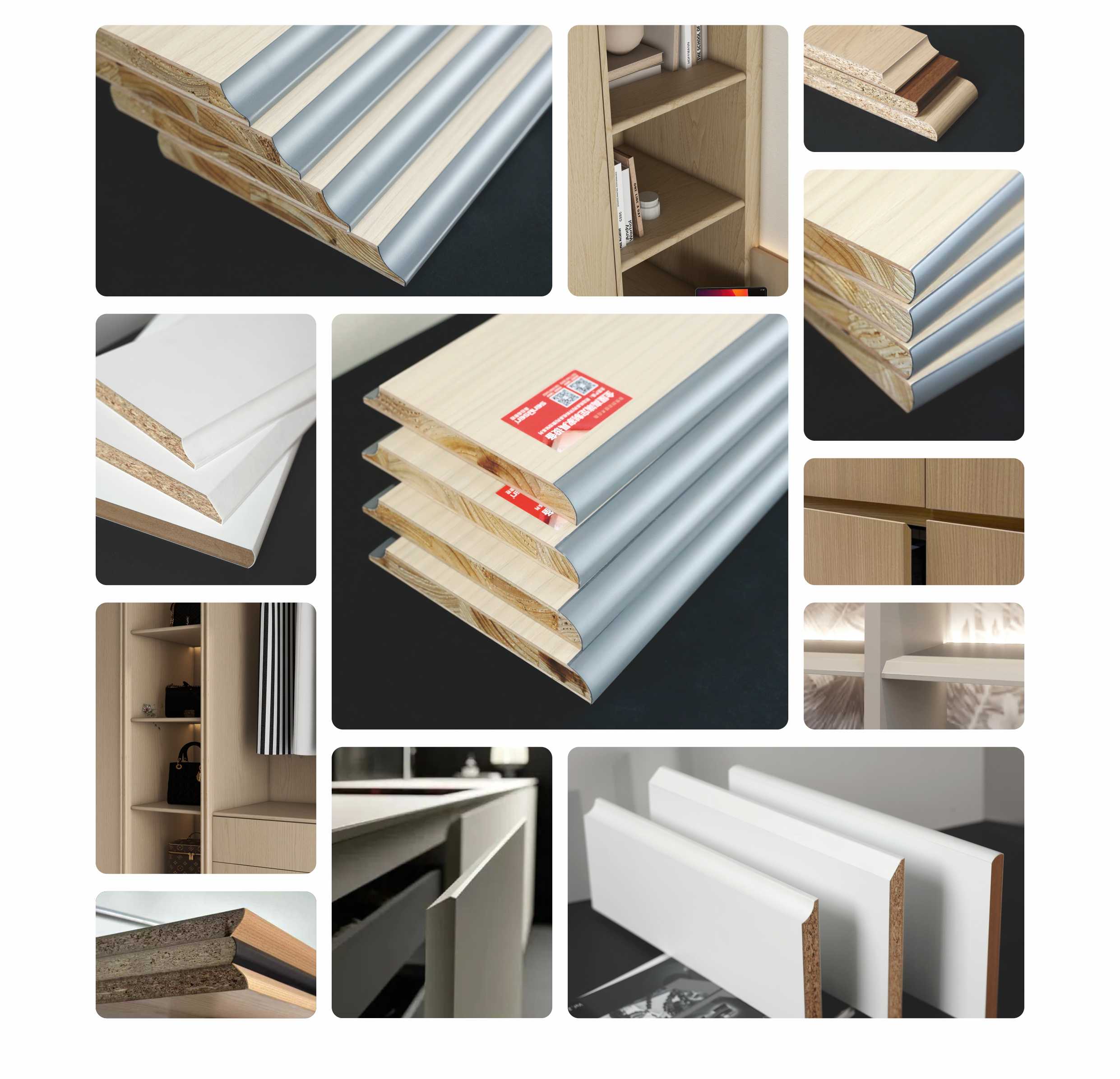

Varlous artificlal boards such as density boards, particle boardis, multl-layer boards, aluminum honeycomb boards, etc.,batch customized furniture such as office furniture, cabinets, bathroom cabinets, etc.

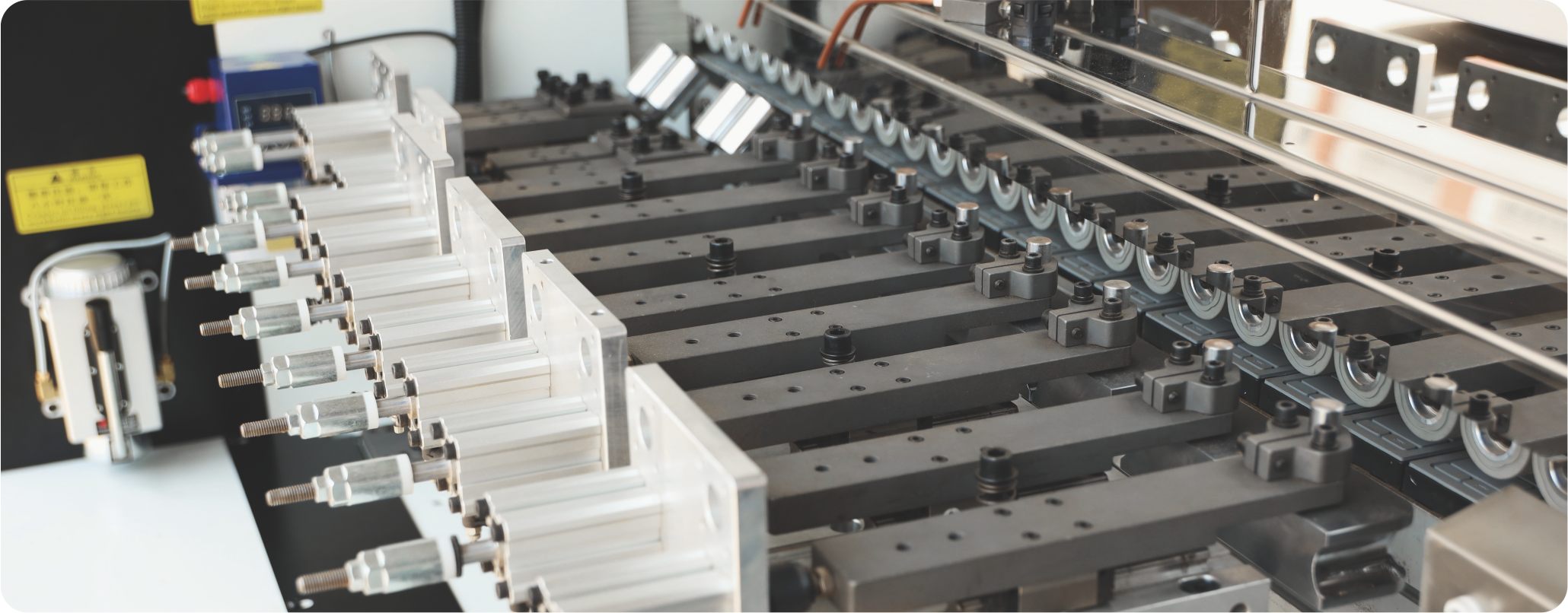

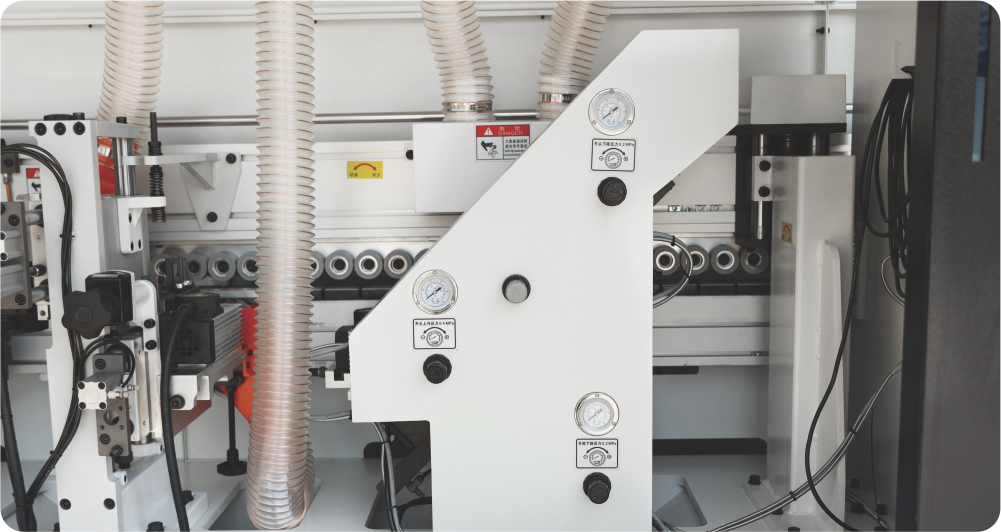

Forming pressing
1.The press wheel is pushed through the cylinder to fit the edge strip closely with the sheet;
2.The multi-stage pressing wheel design is adopted to achieve uniform stress and improve the bonding effect;
3.Make sure that the edge sealing surface of the sheet is perpendicular to the pressing wheel to reduce fiting deviation;
4.To meet the edge sealing needs of complex shapes such as arcs and special shapes.

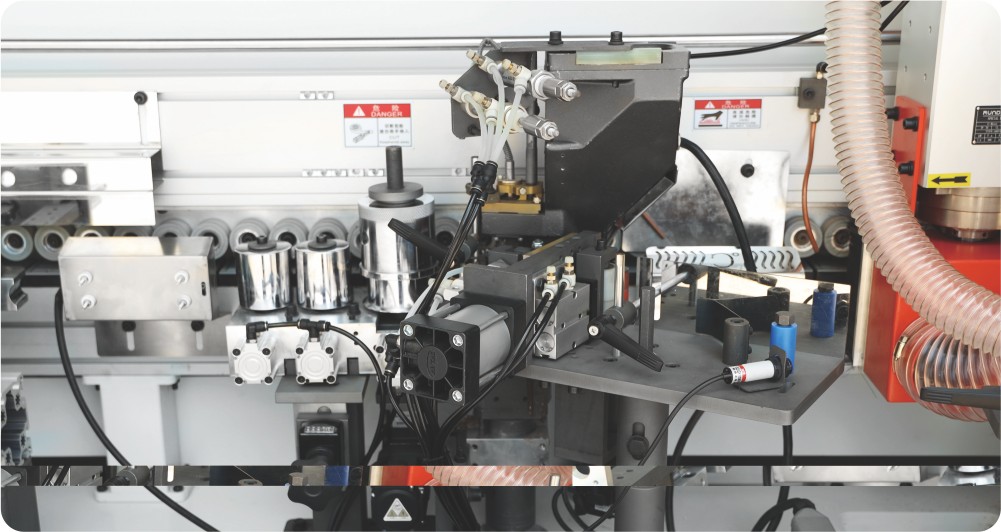

Glue pot device
Photoelectric infrared sensor, controls the amount of
glue residue, Evenly glue is produced and the edge sealing effect is better.

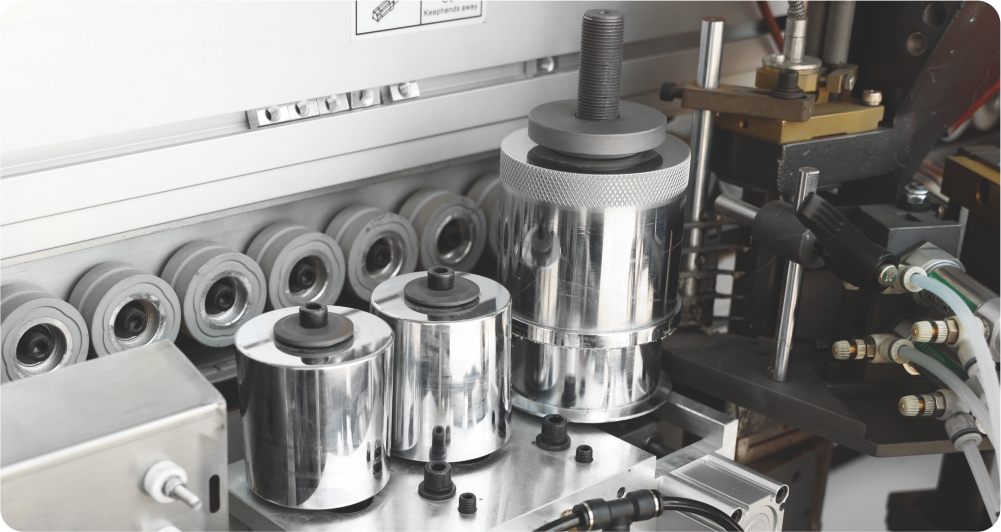

Three-wheel press
Grooved pressing wheel + two steel wheels to avoid the sidebelt floating up and down and deviation. Multi-point tight pressing makes the edge band fit more well with the board.

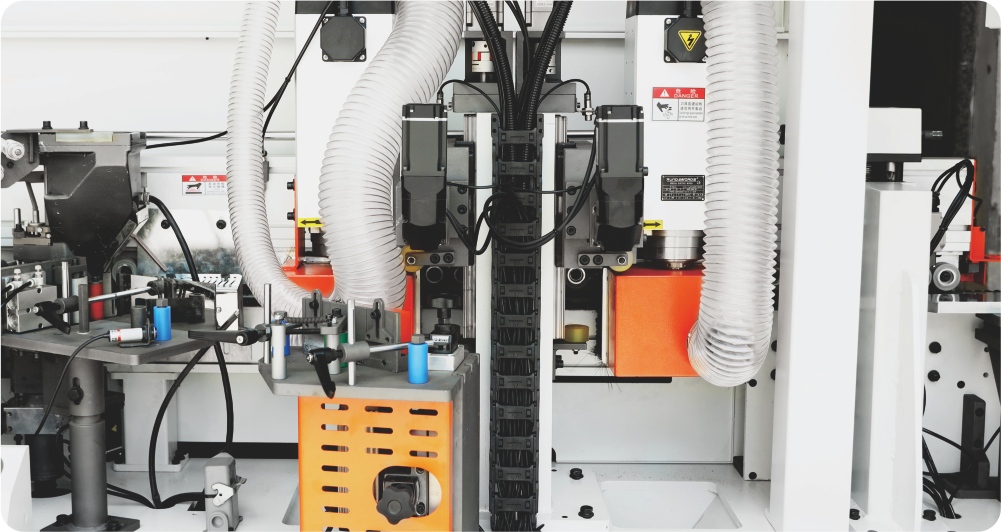

Forming and milling device
Built-in high-torgue motor ensures adjustable milling speed and force,and cooperates with an efficient dust collection system to reduce waste accumulation.
Front and back cutting
Used to quickly cut off the excess edge sealing tape at the front and rear ends of the board to ensure the flatness of the cutting surfaceand effectively eliminate edge collapses, burrs, etc.
