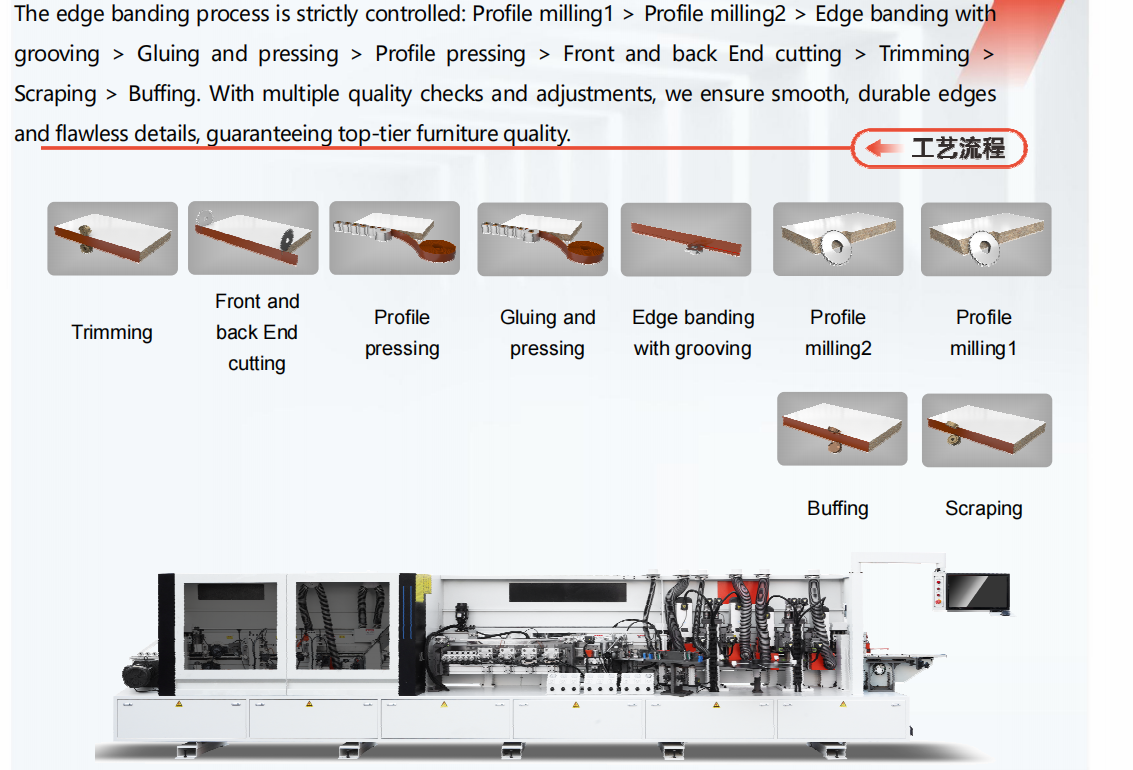

It can seal sub doors, mother doors, T-shaped edges, straight edges, etc,integrating multiple processes to ensure high-quality and aestheticaly pleasing edge sealing of door panels.
L-edge Banding
Through modular cuterhead design, the blade can quickly switch to horizontal or vertical slots to meet cutting needs in different directions Processing of corugated marks, burs, or non verticality that may be left behind after initial processing with a panel saw or cutting saw
Edge banding grooving
According to the preset angle, groove the inner side of the edge banding to facilitate bending and pressing, ensuring the quality of pasting and preventing edge bursting.
Lamination molding
By using a cylinder to push the pressure wheel, the edge banding is tightly adhered to the board, and a multi-stage pressure wheel design is adopted to achieve uniform force and improve the bonding effect
End trimming
Used for quick cutting of excess edge banding at the front and rear ends of the board to ensure flatness of the cut surface,effectively eliminating chipping, burrs, etc.
Edge Trimming
By using high-speed motors and automatic tracking technology,the excess edge banding on both sides of the edge banding is smoothed out.
