PRODUCT SENBSEN

The products cover four major series: cutting, sawing,
edge banding and drilling, with a total of over 70 application

products.

 PRODUCT SENBSEN
LM1000jpg
1_0003
74579f7d-3db1-41fa-a52e-b72ba25f314c
2JPG(1)

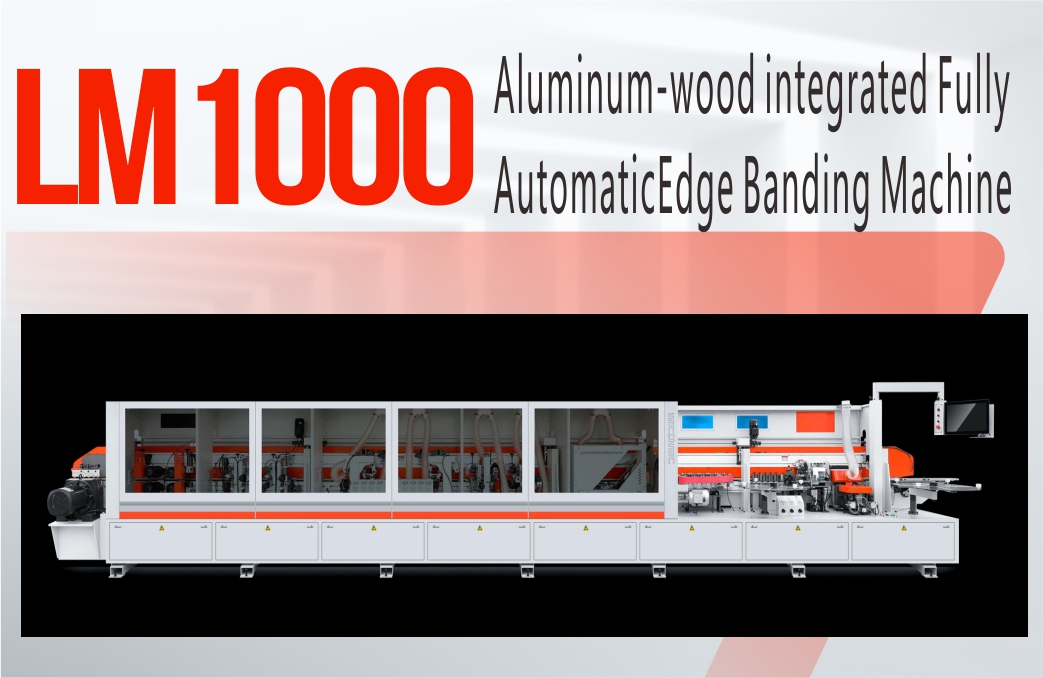

SBS-LM1000 Aluminum-wood integrated Fully AutomaticEdge Banding Machine

Aluminum-wood edae banding for mass-customized furniture such as wardrobes, cabinets, and bathroom cabinets.

Product Details

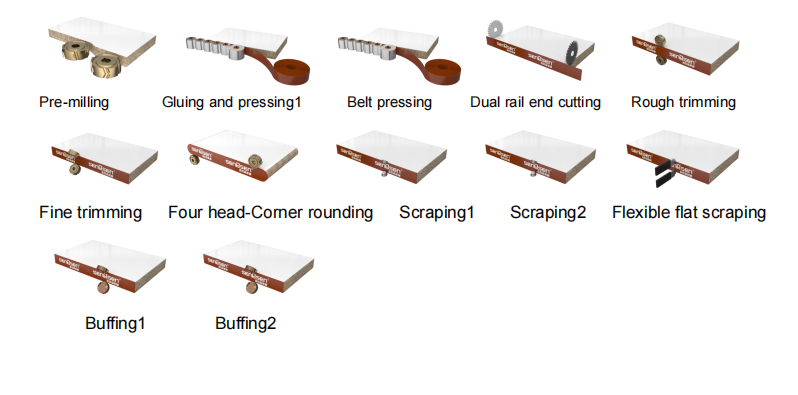

Strict control throughout the edge sealing process, including pre miling of beveled edges>pre miling of straight edges>groove engraving on edge strips>PUR coating>oblique and straight pressure pasting>PUR coating>pressure pasting Double rail alignmentb>rough repair>fine repair>four blade tracking>edge scraping 1>edge scraping 2>flat scraping>polishing and waxing>polishing 1>polishing 2; After multiple rounds of quality inspection and repeated debugging,we have achieved smooth and firm edge sealing with perfect details, providing a solid quarantee for furniture quality.






Various artificial boards such as density boards, particle boards, multi-layer boards, aluminum honeycomb boards, etc.;
batch customized furniture such as office furniture, cabinets, bathroom cabinets, etc.






Double guide end cutting

1.The dual rall design avoids the problem of delayed handling of both head alignment and reaction alignment with a single rall.

2.Through precise double linear guide rail motion, automatic tracking by the model and fast cuting by high-speed motor.

3.Ensure that the cutting surface is flat and smooth, and quickly cut off the edge banding at the beginning and end of the workpiece.
