PRODUCT SENBSEN

The products cover four major series: cutting, sawing,
edge banding and drilling, with a total of over 70 application

products.

PRODUCT SENBSEN
8jpg
3jpg
5jpg(1)
1_0004

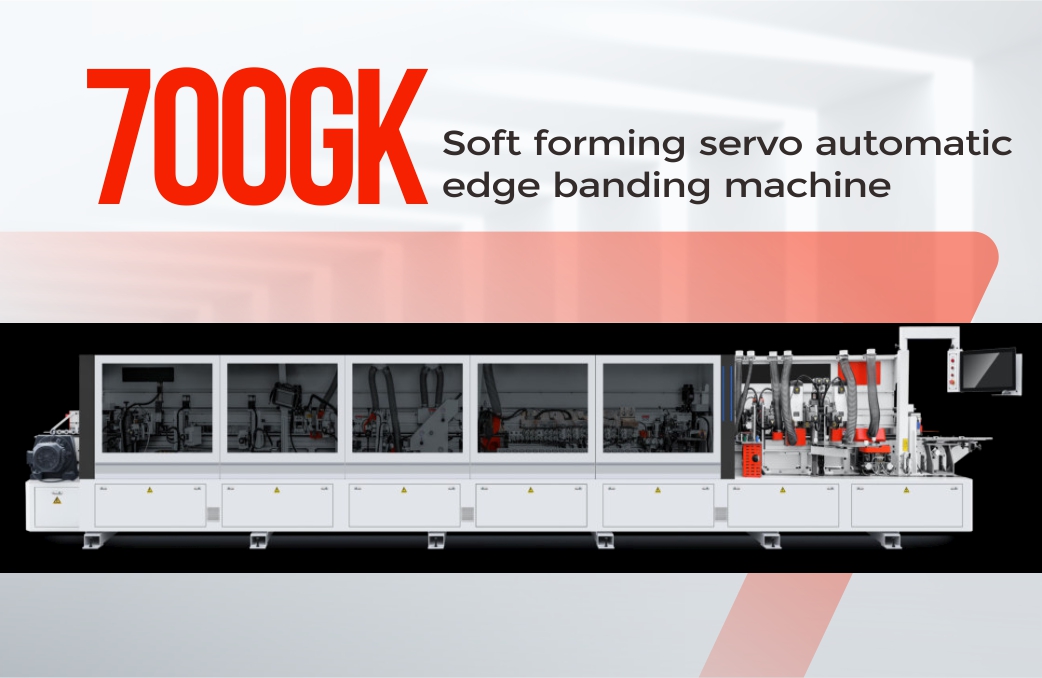

SBS-S700GK Soft Forming Servo Automatic Edge Bandinag Machine

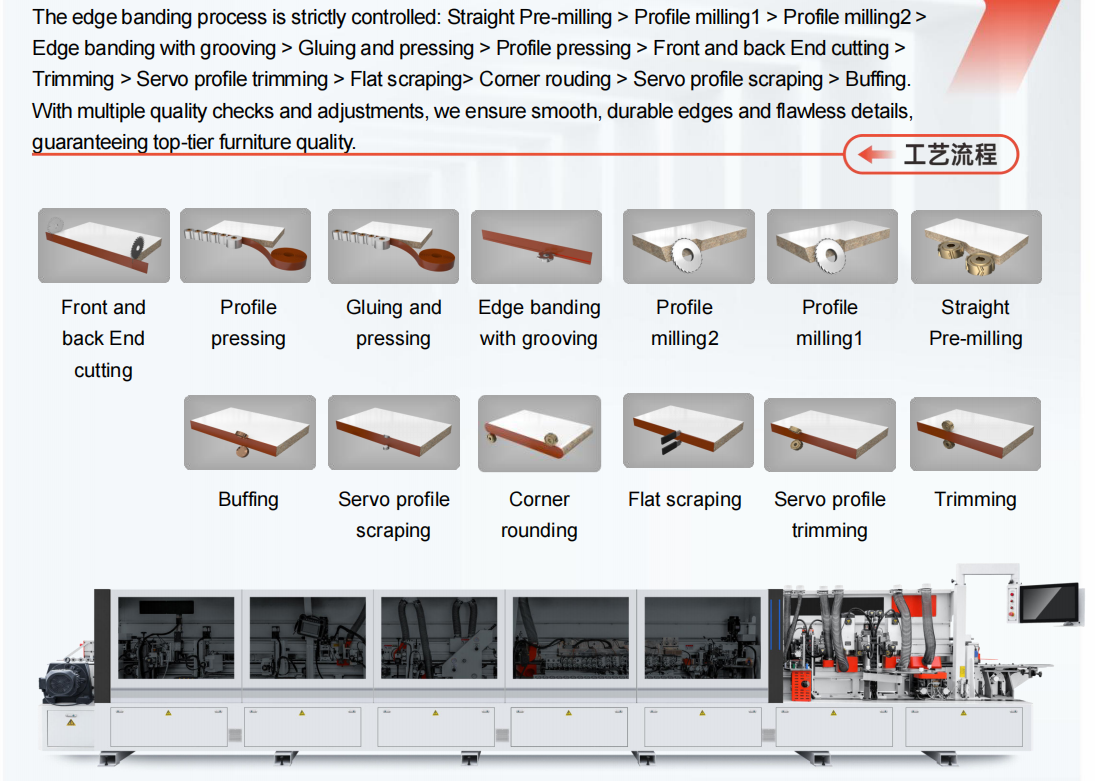

The edge banding process is strictly controlled: Straight Pre-milling > Profile milling1 > Profile milling2 > Edge banding with grooving > Gluing and pressing > Profile pressing > Front and back End cutting >

Trimming > Servo profile trimming > Flat scraping> Corner rouding > Servo profile scraping > Buffing. With multiple quality checks and adjustments, we ensure smooth, durable edges and flawless details,
guaranteeing top-tier furniture quality.

Product Details

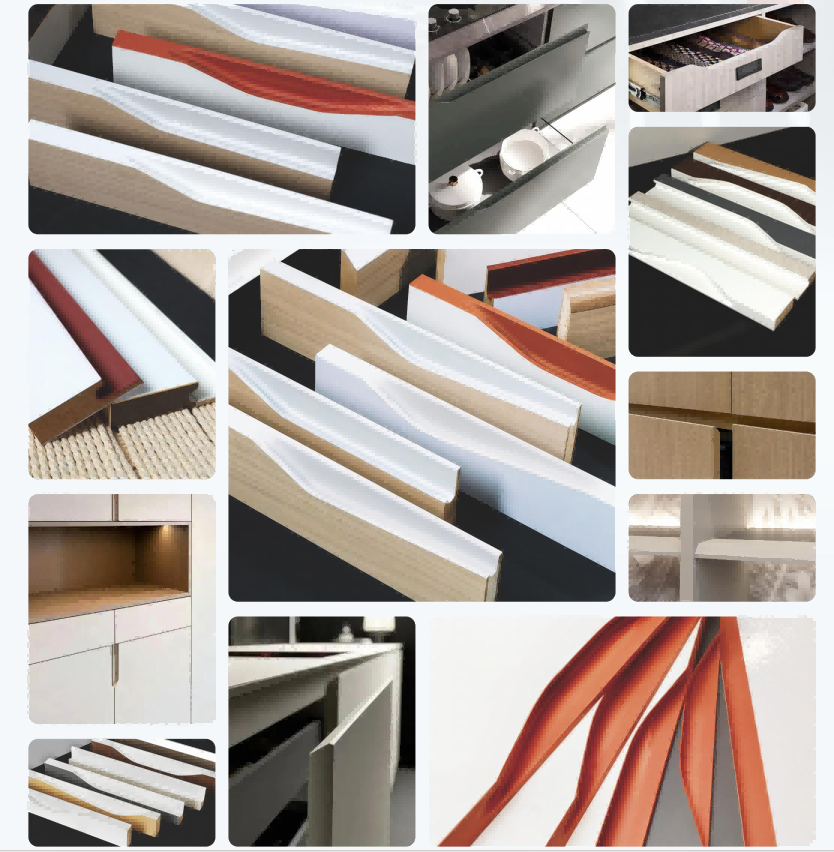

Density board, particle board, plywood, aluminum honeycomb panel, and various other types of engineered wood panels; Custom batch production of office furniture, cabinets, bathroom vanities, and more.

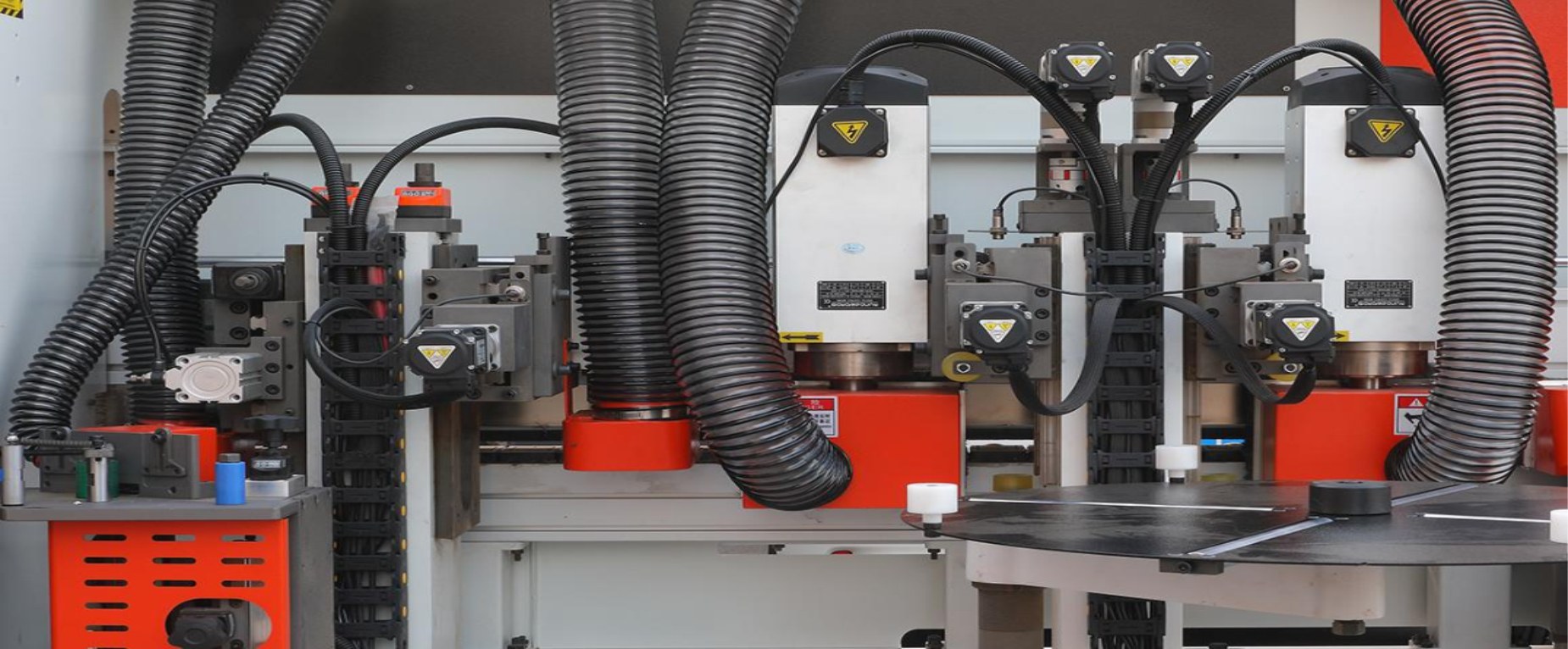

Forming Milling Assembly
The fully automatic system controls and precisely adjusts the lifting height with servo mechanisms, enabling precise milling for various edge banding styles such as J-shape,C-shape, left half-J, right half-J, straight, waterdrop, and bullhorn. The formed edges are smooth an burr-free.





Glue and pressing（Free-clean glue pot）Free cleaning required,uniform glueapplication,seamless glue lines, and quick switching between different colors of glue to meet variousneed.





End cutting

By precise linear guide movement, the edge banding at both ends of the front and rear can be quickly cut to improve the quality of the edge banding.





Rough and fine trimming

Cut off the excess edge bands on the upper and lower surfaces of the protruding board, so that the upper and lower edges of the edge banding are flush with the upper and lower surfaces of the board.





Flexible flat scraper

Scrape off the remaining adhesive and trim the edge strip on the board that has been edge sealed, without damaging the board, to improve the quality of edge sealing.
