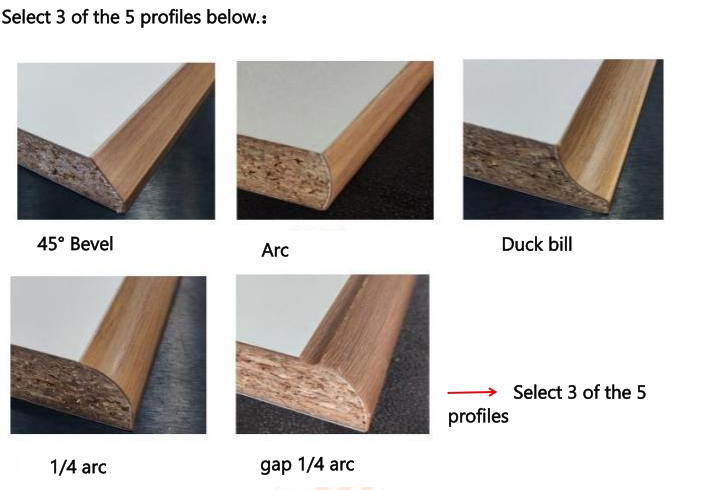

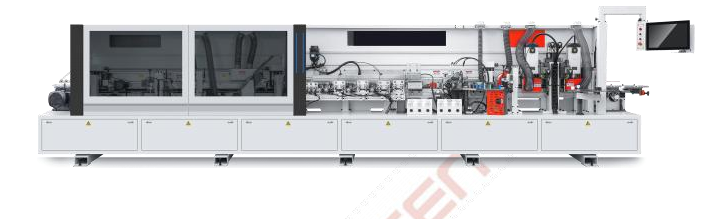

| 5-select-3 working mode gap arc edge bander. Process gap arc, quarter arc, duck-mouth edge, eyebrow arc and bevel edge. For high-end special-shape furniture with gap-reserve design. |
Varlous artificlal boards such as density boards, particle boardis, multl-layer boards, aluminum honeycomb boards, etc.,batch customized furniture such as office furniture, cabinets, bathroom cabinets, etc.

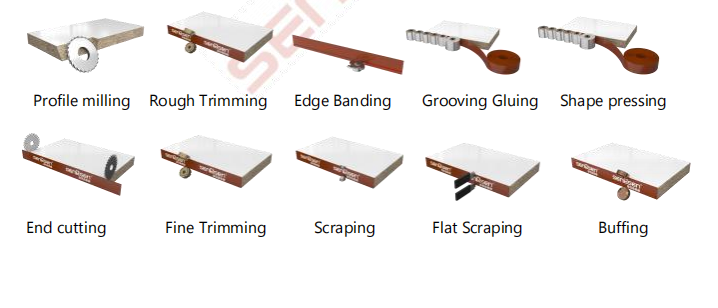

Forming pressing
1.The press wheel is pushed through the cylinder to fit the edge strip closely with the sheet;
2.The multi-stage pressing wheel design is adopted to achieve uniform stress and improve the bonding effect;
3.Make sure that the edge sealing surface of the sheet is perpendicular to the pressing wheel to reduce fiting deviation;
4.To meet the edge sealing needs of complex shapes such as arcs and special shapes.
Glue pot device
Photoelectric infrared sensor, controls the amount of
glue residue, Evenly glue is produced and the edge sealing effect is better.
Three-wheel press
Grooved pressing wheel + two steel wheels to avoid the sidebelt floating up and down and deviation. Multi-point tight pressing makes the edge band fit more well with the board.
Forming and milling device
Built-in high-torgue motor ensures adjustable milling speed and force,and cooperates with an efficient dust collection system to reduce waste accumulation.
Front and back cutting
Used to quickly cut off the excess edge sealing tape at the front and rear ends of the board to ensure the flatness of the cutting surfaceand effectively eliminate edge collapses, burrs, etc.
