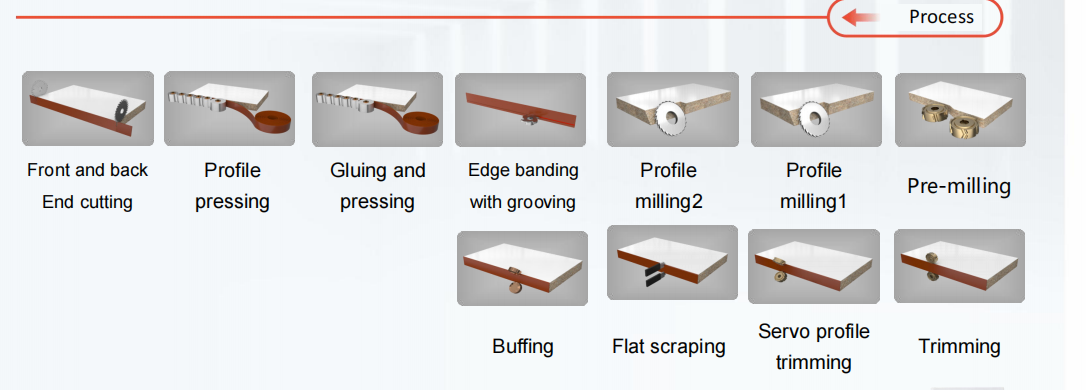

The edge banding process is strictly controlled: Straight Pre‑milling > Profile milling1 > Profile milling2 > Edge banding with grooving > Gluing and pressing > Profile pressing > Front and back End cutting > Trimming > Scraping+Servo profile scraping > Flat scraping > Buffing.
Various artificial boards such as density boards, particle boards, multi-layer boards, aluminum honeycomb boards, etc.;
batch customized furniture such as office furniture, cabinets, bathroom cabinets, etc.
Forming pressing
1.The press wheel is pushed through the cylinder to fit the edge strip closely with the sheet;
2.The multi-stage pressing wheel design is adopted to achieve uniform stress and improve the bonding effect;
3.Make sure that the edge sealing surface of the sheet is perpendicular to the pressing wheel to reduce fitting deviation;
4.To meet the edge sealing needs of complex shapes such as arcs and special shapes.
Glue pot device
Photoelectric infrared sensor, controls the amount of glue residue, Evenly glue is produced and the edge sealing effect is better.
Servo trimming
Servo imitation refinement, following the irregular trajectory to create the upper and lower arcs of the edge banding according to the shape, resulting in a natural and beautiful effect.
Forming and milling device
Multi-component forming and pressing to adapt to
various edge banding needs. The cylinder drives the
pressure wheel to tightly bond the edge banding
strip with the panel, meeting the edge banding
requirements for complex shapes such as J/C-type,
left half J, right half J, waterdrop, and more.
Front and back cutting
Used to quickly cut off the excess edge sealing tape at the front and rear ends of the board to ensure the flatness of the cutting surface and effectively eliminate edge collapses, burrs, etc.
