The products cover four major series: cutting, sawing,
edge banding and drilling, with a total of over 70 application

products.

 PRODUCT SENBSEN
1jpg
01_0003
01_0004
7JPOF(1)

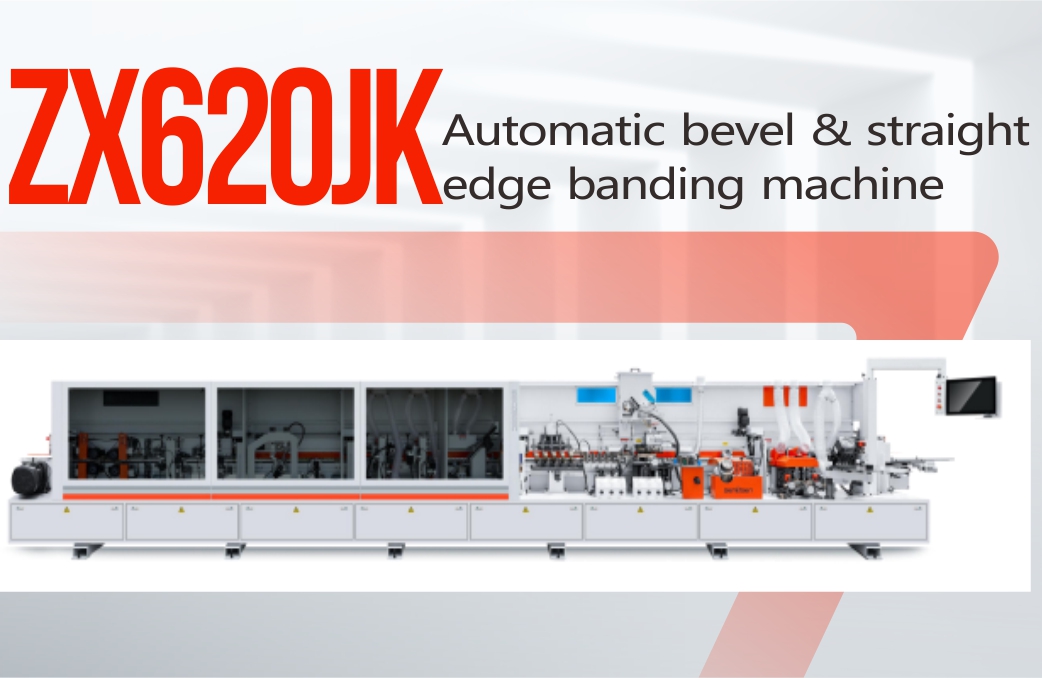

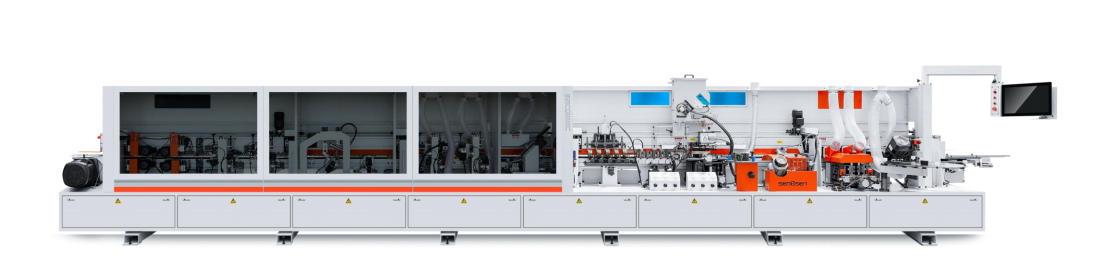

SBS-ZX620JK Automatic bevel & straight edge banding machine

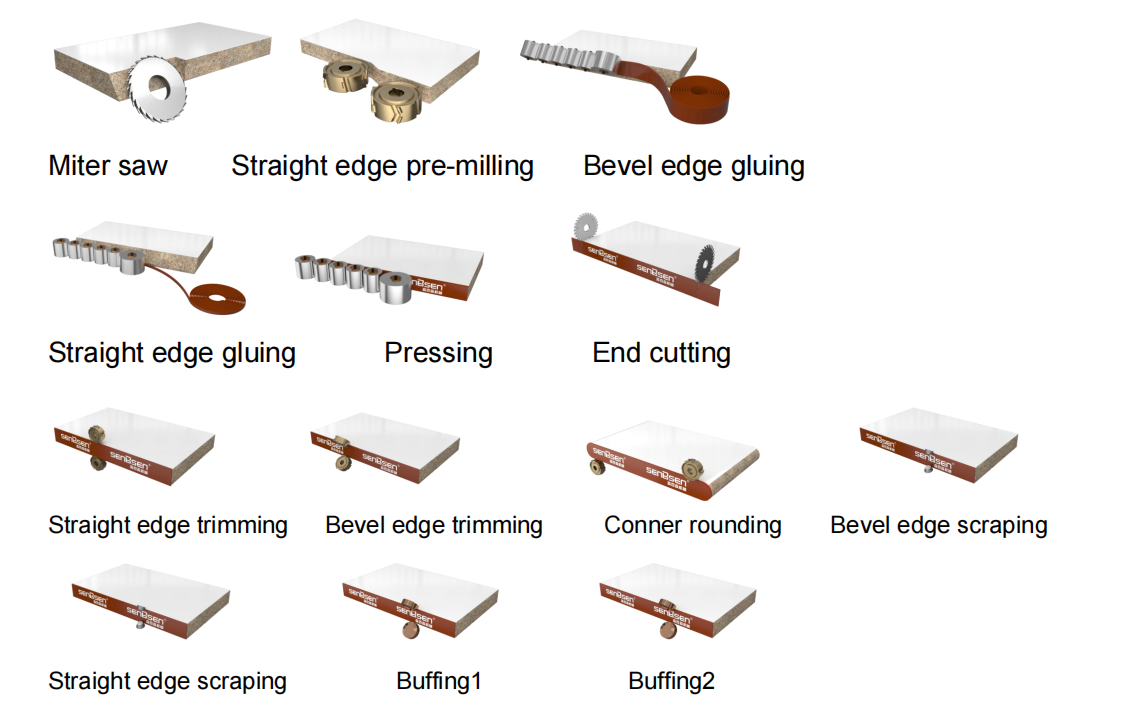

Strictly control the entire edge‑banding process, including miter saw, straight edge pre‑milling, bevel edge gluing, straight edge gluing, pressing>end cutting>straight edge trimming>bevel edge trimming>conner rounding>bevel edge scraping>straight edge scraping>buffing1>buffing2;After multiple rounds of quality inspection and repeated debugging, we have achieved smooth and firm edge‑banding with perfect details, providing a solid guarantee for furniture quality.

Product Details





Strict control is exercised throughout the edge sealing process, including pre miling of beveled edges, grooving of edge strips, gluing molding and pressing, front and rear alignment, finishing, edge scraping, and polishing. After multiple rounds of quality inspection and repeated debugging, we have achieved smooth and firm edge sealing with perfect details,providing a solid guarantee for furniture quality.








Various artificial boards such as density boards, particle boards, multi-layer boards, aluminum honeycomb boards, etc.,batch customized furniture such as office furniture, cabinets, bathroom cabinets, etc.






Self-developed glue

Adopting the integrated glue pot developed by Senbaisen, with a reasonable structure,Small footprint,perfect edge sealing effect Optional PuR glue coating machine, PuR edge sealing is environmentally friendly,and the quality of the sealed board is high.











Bevel pre-milling
Specially designed for beveled edges, it usually supports edge sealing preprocessing for 45 ° beveled and straight edges.





Edge banding grooving

According to the preset angle, groove the inner side of the edge banding to facilitate bending and pressing, ensuring the quality of pasting and preventing edge bursting.





Non powered sliding rail

Supporting and guiding the smooth sliding of the board to improve the efficiency and quality of edge sealing operations.
